XSD2GUI Engine

Author: Umesh Batra
Project source: http://sourceforge.net/projects/xsd2gui/

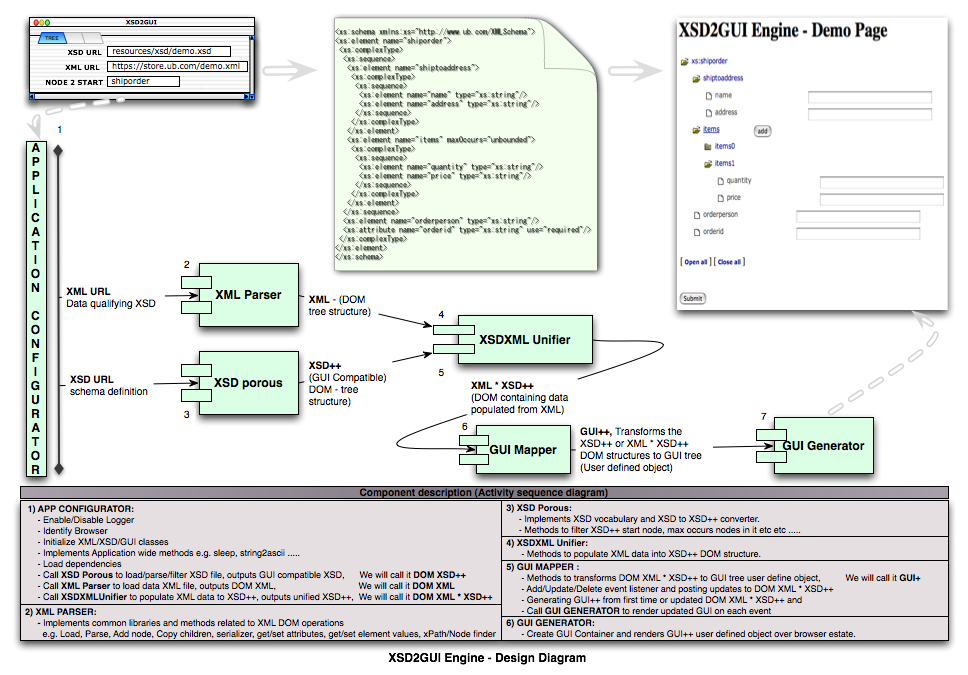

AJAX based tool-kit to generate HTML form from any XSD file. It can add/delete nodes per XSD. Utilizes DOM, Transforms XSD to meta XSD and meta XSD to GUI DOM and to HTML. Populates valid XML file after rendering the XSD based HTML form on browser.

XSD input

XSD data you want to render:

<xs:schema xmlns:xs="http://www.umeshbatra.com/XMLSchema">
   <xs:element name="shiporder">
      <xs:complexType>
         <xs:sequence>
            <xs:element name="shiptoaddress">
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="name" type="xs:string"/>
                        <xs:element name="address" type="xs:string"/>
                    </xs:sequence>
                </xs:complexType>
            </xs:element>
            <xs:element name="items" maxOccurs="unbounded">
                 <xs:complexType>
                      <xs:sequence>
                          <xs:element name="quantity" type="xs:string"/>
                          <xs:element name="price" type="xs:string"/>
                      </xs:sequence>
                 </xs:complexType>
            </xs:element>
        </xs:sequence>
        <xs:element name="orderperson" type="xs:string"/>
        <xs:attribute name="orderid" type="xs:string" use="required"/>
      </xs:complexType>
    </xs:element>
</xs:schema>

XML data you want to populate (optional):

Start node:

View pallets

[ Open all ]

[ Close all ]
